Animated mechanical locking

Diagram

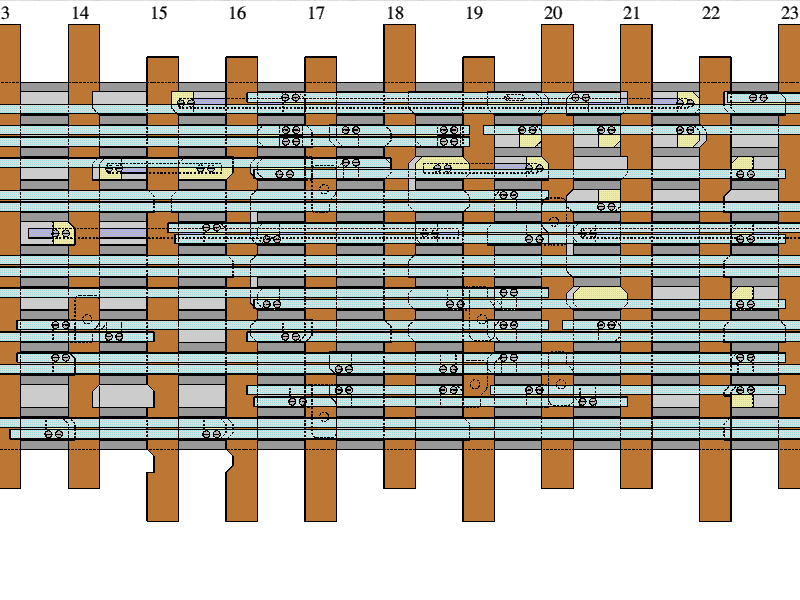

Lever 23 is pullled to clear signal 23 (provided the detection on 17 points is made up). This locks levers 17 and 22 reverse and levers 29, 32, 33 and 34 are locked 'each way' (trailing points in rear of signal).
