Animated mechanical locking

Diagram

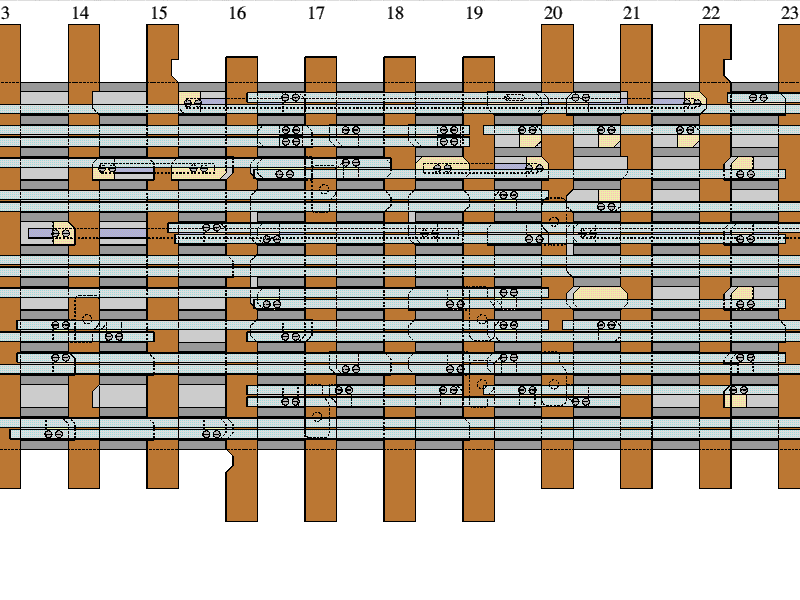

Lever 33 is pulled to bolt points 32 to release signal 14. The signalling principles require points a short distance beyond the next signal to be bolted and pulling 33 releases bar 3 in channel 9 to be driven left.

Click here to pull 14.
